Low Noise Portable Dust Collector , Multistage Welding Fume Eliminator

China Low Noise Portable Dust Collector , Multistage Welding Fume Eliminator supplier

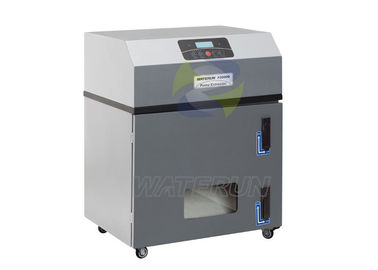

Large Image :  Low Noise Portable Dust Collector , Multistage Welding Fume Eliminator

Product Details:

Place of Origin: China
Brand Name: Waterun
Certification: CE/ROHS/SGS
Model Number: F2000D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 52x44x66cm/set, 25kgs
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Product Name: Dust Collector Application: Capture Industrial Process Dust
Material: Metal,Plastic,HEPA Filter Noise: Less Than 70 DB
Duct Diameter: Dia.75mm X 1.4m Voltage/Power: 330W,110V-220V
Systemic Flow: 430m3/h Filtering Efficiency: 0.3micron 99.97%

Low Noise Portable Dust Collector Multistage Welding Fume Eliminator





Specifications:

Model Number:

F2000D

Filters Quantity:

Dust collect bag:1pcs, P8 filter 1pc,glass fiber filter 1pc

Power/Voltage:

330W,110-220V

Systemic Flow:

400m3/h

Filtering Efficiency:

0.3micron 99.97%

Length of Duct:

Dia.75mm x 1.4M

Noise:

Less than 70db

Dimensions(mm)

420x320x555

Net weight

20kgs



Description:

1.Waterun industrial dust collectors & dust removal systems effectively capture industrial process dust. Our dust extractors remove dust generated from: CNC grinding & routing, electronics & pharmacuetical manufacturing, jewlry polishing, lab & shop environments.

2. Dust collection systems consist of inexpensive pre-filters, HEPA filters and optional gas/odor filters that remove harmful particulates and return purified air to the workplace.

3. Specially-designed alloy eddy current wind wheel is featured by fatigue-resistance, stable running, low noise, large air volume and high efficiency.

4. Stepless speed regulating makes air quantity adjusted at will.

5. Multistage filtering design guarantees the thorough harmful matters filtering in smog, protecting environment and human health.

6. Preliminary-effect, medium effect and main filtering elements can be changed independently. Not only does this designing form lengthen the using-span of filters, but also lowers the using cost of filters.

7. Smog-absorbing pipeline can be changed in direction and positioned randomly and operated easily and conveniently. Other smoke-absorbing pipelines shall not be paved additionally, beneficial for the cleanness and beauty of working space.

8. Full-metallic framework structure design can resist strong impact and vibration.

9. Casters installed under the bottom are convenient for movement.


Features:

1.Brushless motor with low noise, small vibration, stable running, long life-span, low electricity consumption, high efficiency (Zero maintenance and zero consumables of brushless motor spare parts).

2.With the intelligent control panel and digital display, the operation becomes easy and simple. By pressing the button, you can freely adjust the air volume and set the working time,. you can achieve real-time monitoring on the working status.

3. Equipped with the remote control, the operator can control the machine from a distance.

4. The machine surface is made of metal, more corrosion resistance and durable

5. Multiple filtering ensure through purifying efficiency

6. Front sight glass design to observe the dust in real time


Applications:

Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Don’t despair if you don’t see your application listed below.

Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions! Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations.


1.

 soldering fume extractor

2.

 laser cutting, laser engraving and marking

3.

 electronics Manufacturing

4.

 welding, laser welding

5.

 medical, moxibustion, moxa-moxibustion

6.

 beauty fume extraction

7.

 Pharmaceutical and laboratories, chemical

8.

 3D printing

9.

 dust collector



Competitive Advantage:

Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.

Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.


FAQ:

1. What’s the functions for the filters?

Answers. 1) Pre-Filter/F8 pre-filter: the large-size pad filter can filter large particles of dust (according the requirement to select pre-filter or F8)
2) PP Middle Filter/Fiber glass filter: it filters the middle-size, small size particles bigger powders for prolonging the main filter's life. (according the requirement to select PP middle filter or fiber glass filter,can use both, the efficiency better.)
3) Main Filter/Active carbon: it cleans harmful particles and fumes.
4) High efficiency filter(combine middle filter and active carbon filter): it can filter about 0.3micron particles and other harmful fumes.

2. What’s the advantage compare with ducted exhaust fan?

Answer: 1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant  smell (7) to reduce dust and other harmful substances, and so on.

3. What’s the life span of our fume extractor?

Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.

4. The ducts for the fume extractor can be shortened or lengthened?

Answer: It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.

5. What’s the best distance between the nozzle and the smokes?

Answer: The distance to be 5-15cm is the best.

6. How long need to to replace the pre-filter, middle filter and the main filter?

Answer: 1. Pre-filter : normally needs to replace by 1 months
        2. Middle filter: normally needs to replace by 3 months
        3. Main filter: normally needs to replace by 6 months.

7. Bent pipe will affect smoke purify?

Answer: Yes, it affect the suction power, it should reduce the bent rate.

8. Can our fume extractor completely filtered poison gas?

Answer: No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.
